For the ultimate performance on and off-road, BDS offers the 5.5'' Long Arm Suspension Lift Kit for your 2012-17 Jeep Wrangler JK. This system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel. New mounts are constructed from 1/4" thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics. BDS Pro-Ride coils improve the overall ride quality and offer full coil bind capability for longevity no matter how you use or abuse them.

Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Rear sway bar relocation brackets, front and rear braided stainless steel Kevlar lined brake lines, drop pitman arm, bump stop extensions, track bar brackets, and your choice of NX² series or Fox 2.0 gas shocks.

Optional accessories for this lift kit include front and rear adjustable track bars and steering stabilizer upgrades. As with all BDS lift kits this is covered under the No Fine Print Warranty, so go have fun with it, use it, and abuse it!

This full featured kit also offers shock and steering stabilizer options.

• Tire & Wheel Combinations
• 37x12.50 w/16x8 and 4.5" back spacing

*Trimming may be required*

• Est. Installation: 12 hours
• Difficulty Level (easy 1 - 5 complicated): 3

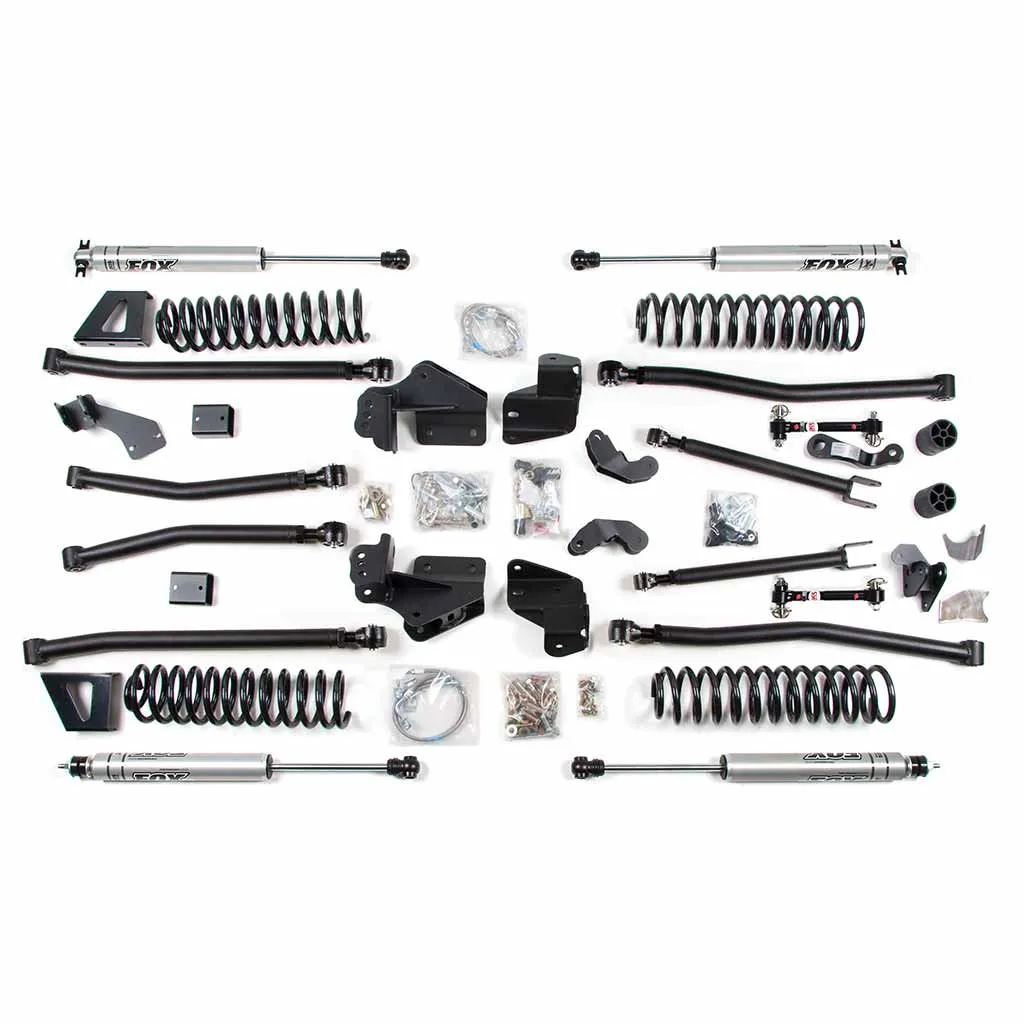

Kit Components
