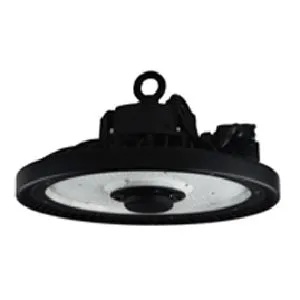

Advantage Environmental Lighting LUFOHB Premium Round LED High Bay
FEATURES
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
- For models with 120-277V AC input voltage, long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70). Models with 347-480V AC input voltage feature L70 performance of at least 205,000 hours.**
- Provides a range of 13,812 to 34,704 lumens.*
- Universal 120-277 & 347-480V AC voltage (50-60Hz) are standard.
- 0-10vdc dimming drivers are standard.
- Watertight, compression-type electrical connectors.
- Mounting options include suspension from pre-installed mounting hook, yoke mounting, and attachment to electrical conduit.
- Optional, IP65 Merrytek occupancy/daylight sensor and junction box assembly provides a fully-wired luminaire & control package. To order, add the suffix “OS” to your luminaire catalog number (see example below).
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index > 80.
- Die cast aluminum housing, painted black.
- Easy installation in new construction or retrofit.
WARRANTY & LISTINGS
- cULus listed for wet locations in ambient temperatures from:
- 14,000 & 21,000 lumen models: -40°C to 55°C (-40°F to 131°F).
- 27,000 & 32,000 lumen models: -40°C to 50°C (-40°F to 122°F). Note: The minimum temperature for models with occupancy sensors is -25°C (-13°F).
- DLC premium approved.
- IP65 rated for ingress protection.z Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
- Complies with FCC Part 15, class B.
- Complies with EN61000-4-5, surge immunity protection: 120-277V models: 6kV. 347-480V models: 10kV.
- 5-year warranty of all electronics and housing.
MOUNTING OPTIONS
- Suspension from pre-installed mounting hook (cast iron M10 eyebolt) with locking set screw is standard.
- Ceiling-mounted installation (using optional yoke mounting bracket, LEDHBRSN-YOKE-PRM) provides up to 100° of adjustability.
- Two ways to mount luminaire to electrical conduit:
- Attach conduit (½” NPS) to optional yoke mounting bracket (LEDHBRSN-YOKE-PRM).
- Optional pendant snap hook (LEDHBRSN-PSH-PRM-V2) attaches to electrical conduit (¾” NPS).
| LUFOHB14L4K: LED UFO High Bay 98 Watts 14,073 Lumens 4000K 120-277V | LUFOHB14L5K: LED UFO High Bay 97 Watts 14,112 Lumens 5000K 120-277V | LUFOHB20L4K: LED UFO High Bay 150 Watts 20,251 Lumens 4000K 120-277V | LUFOHB20L5K: LED UFO High Bay 150 Watts 21,047 Lumens 5000K 120-277V | LUFOHB28L4K: LED UFO High Bay 200 Watts 28,049 Lumens 4000K 120-277V | LUFOHB28L5K: LED UFO High Bay 201 Watts 28,441 Lumens 5000K 120-277V |
| LUFOHB32L4K: LED UFO High Bay 240 Watts 32,101 Lumens 4000K 120-277V | LUFOHB32L5K: LED UFO High Bay 240 Watts 32,408 Lumens 5000K 120-277V | LUFOHB15L4KUNC: LED UFO High Bay 101 Watts 14,744 Lumens 4000K 277-480V | LUFOHB15L5KUNC: LED UFO High Bay 101 Watts 14,855 Lumens 5000K 277-480V | LUFOHB21L4KUNC: LED UFO High Bay 149 Watts 21,137 Lumens 4000K 277-480V | LUFOHB21L5KUNC: LED UFO High Bay 148 Watts 21,236 Lumens 5000K 277-480V |
| LUFOHB27L4KUNC: LED UFO High Bay 200 Watts 27,434 Lumens 4000K 277-480V | LUFOHB27L5KUNC: LED UFO High Bay 198 Watts 28,056 Lumens 5000K 277-480V | LUFOHB34L4KUNC: LED UFO High Bay 238 Watts 33,797 Lumens 4000K 277-480V | LUFOHB34L5KUNC: LED UFO High Bay 237 Watts 34,005 Lumens 5000K 277-480V | ODS: LED UFO High Bay Occupancy Sensor | LUFOHB-PSH-PRM-V2: LED UFO High Bay Pendant Snap Hook |
| LUFOHB-YOKE-S: LED UFO High Bay Yoke Mount - 14L/15L and 20L/21L | LUFOHB-YOKE-PRM: LED UFO High Bay Yoke Mount - 27L/28L and 32L/34L |
