DESCRIPTION:
Professional Broadcast POV Camera – A fraction of the size at a fraction of the price

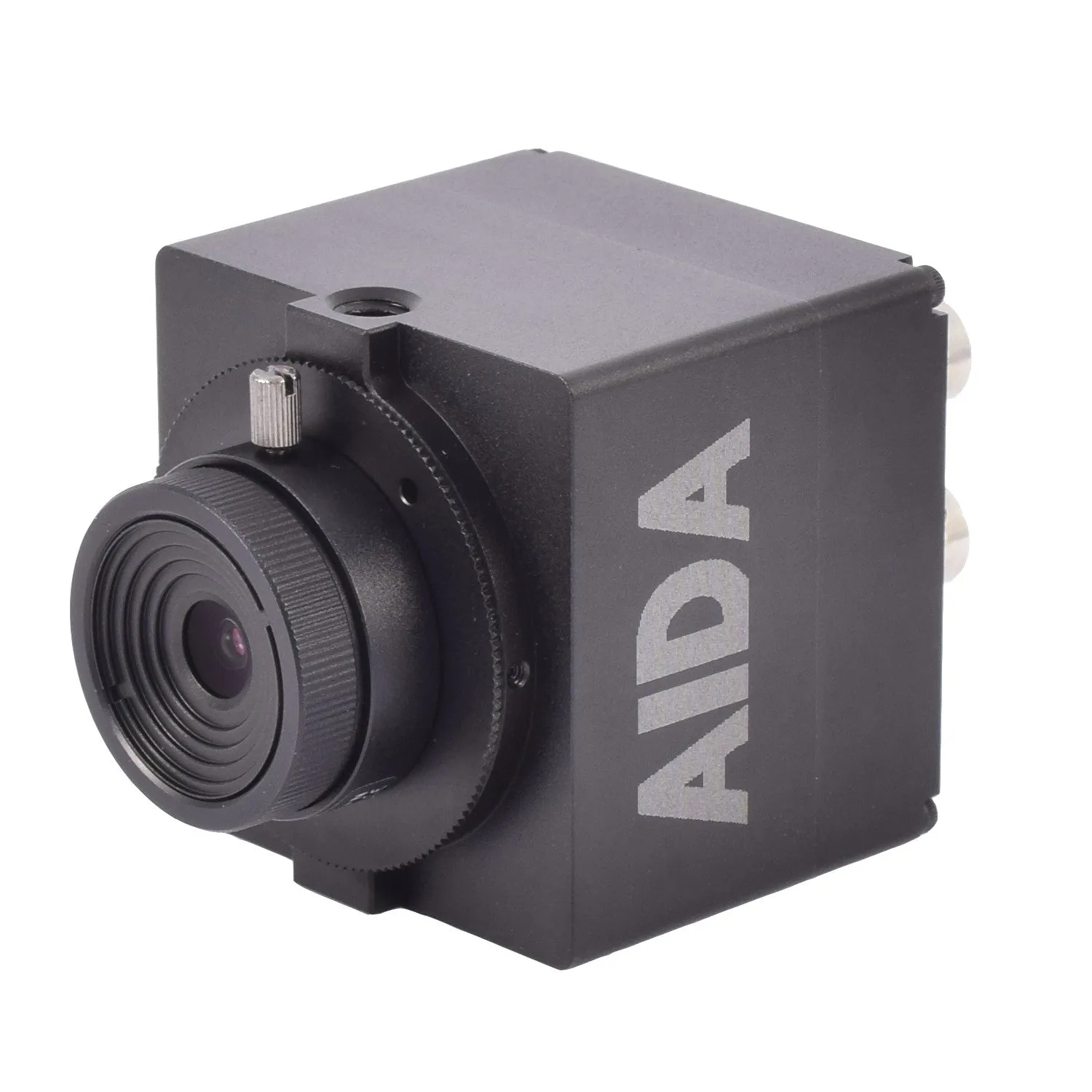

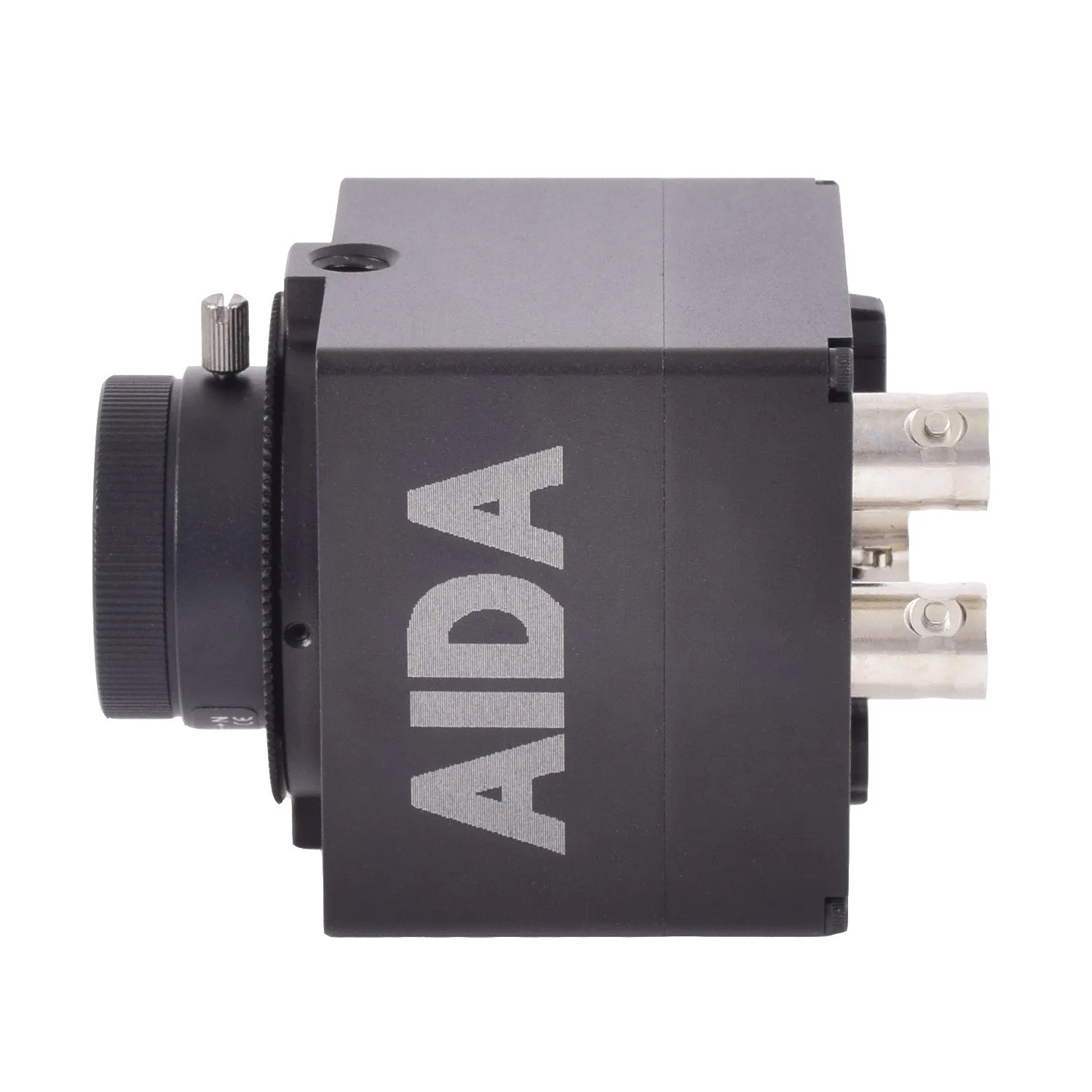

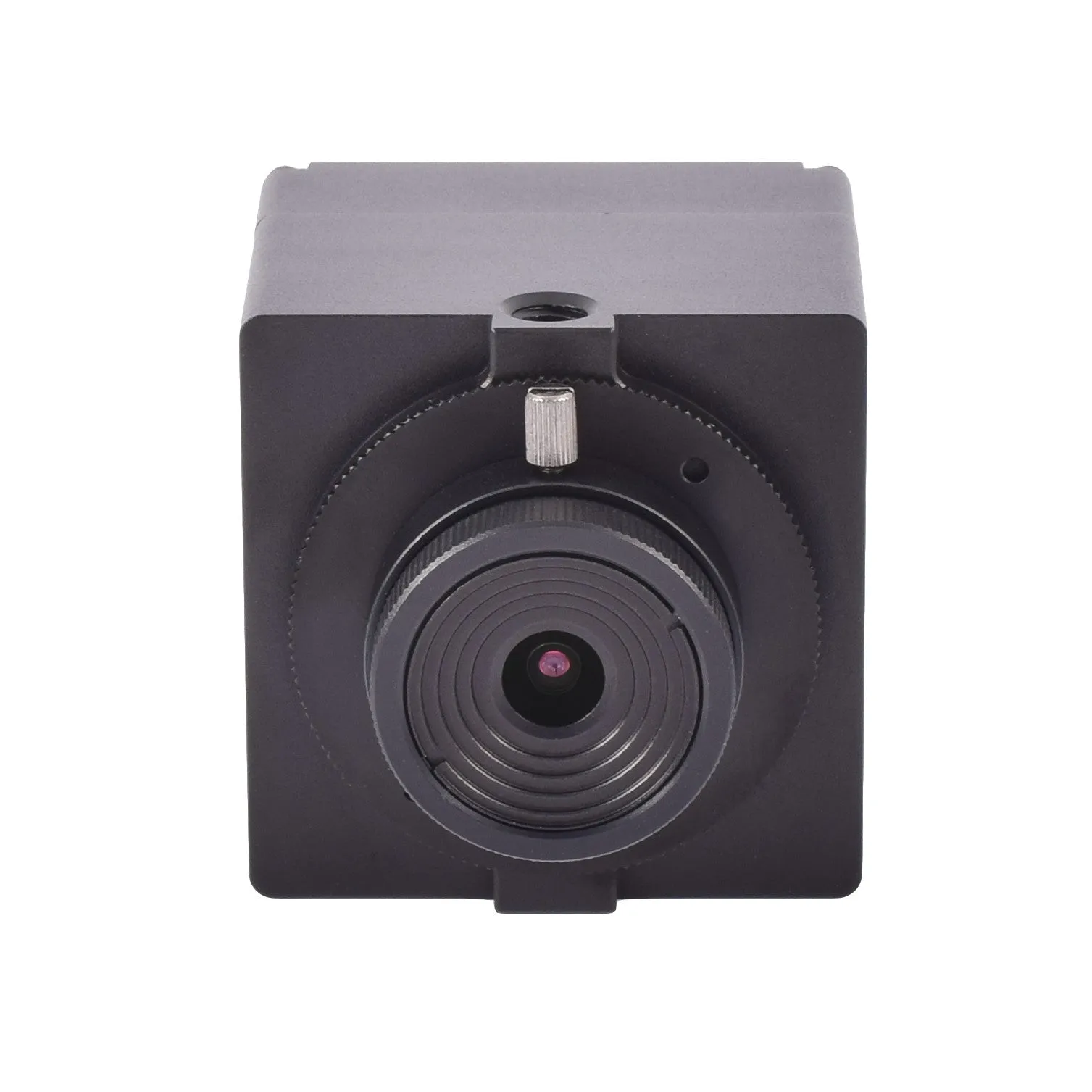

GEN3G-200 is a compact HD 3G-SDI Broadcast Camera produces clear and crisp HD video suitable for use in a broad range of HD video applications. AIDA GEN3G-200 provides HD video in a compact and rugged form factor. The camera features Self-Adaptive Genlock Tri-level Sync, built-in OSD for customizable image settings, inter- changeable lens design making it compatible with auto-iris CS and C mount lenses and audio input that can relay embedded audio via SDI & HDMI. AIDA GEN3G-200 is a go-to camera for a multitude of video production workflows.
FEATURES:
- Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
- Advanced digital imaging processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
- Motion-Compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Tri level sync Genlock synchronizes GEN3 cameras and other system components for seamless vertical interval switching between sources.
- 3G/HD-SDI & HDMI seamless video performance.
- Compatible with other industry leading products, conforming with SMPTE 424M /292M standard.
- Self-Adaptive Resolution Feature captures your reference feed instantly.
- Black Level Set-up provides the better color transition from digital to analog.
- Auto White balance and shutter speed provides the optimized performance in a variety of situations.

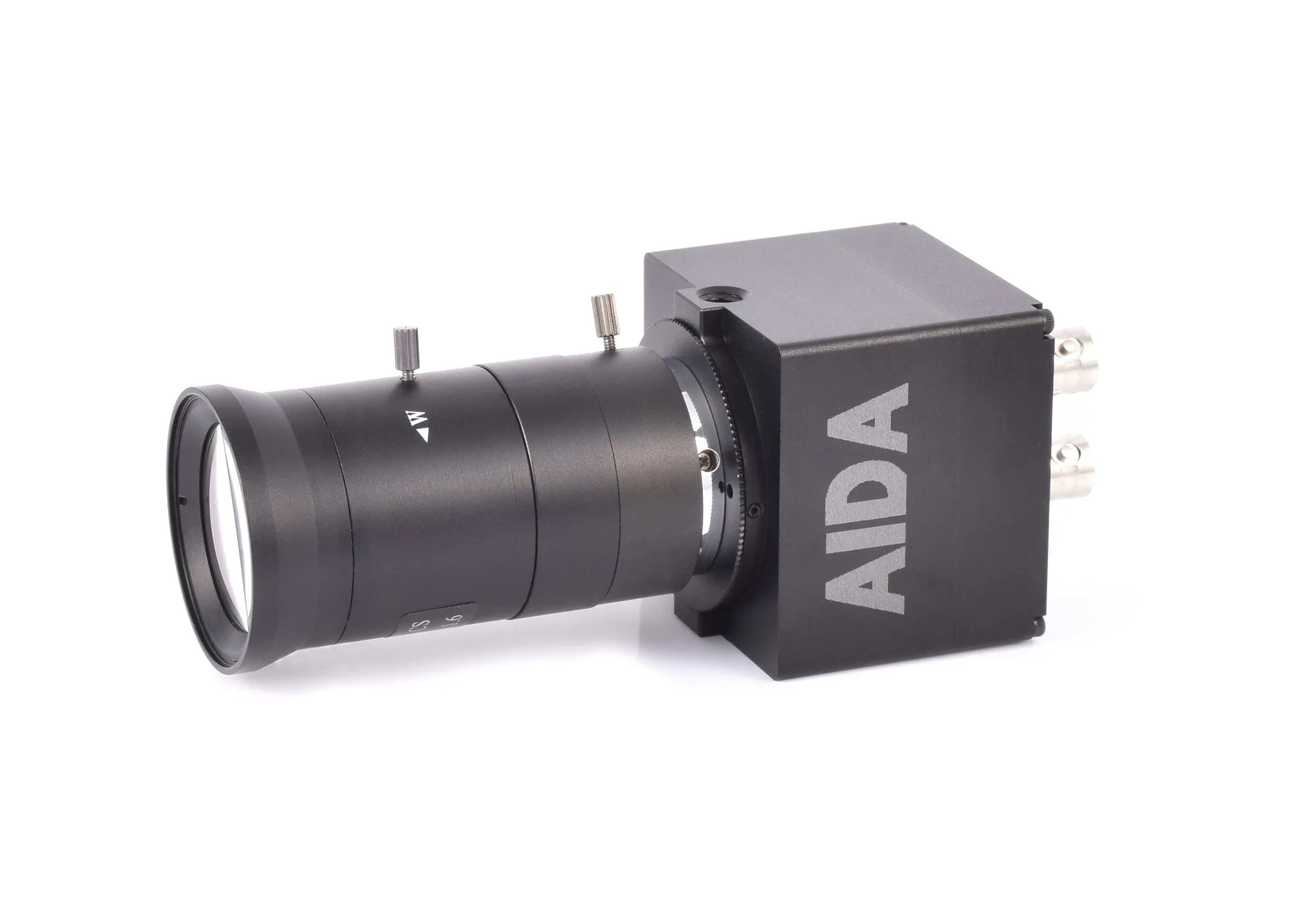

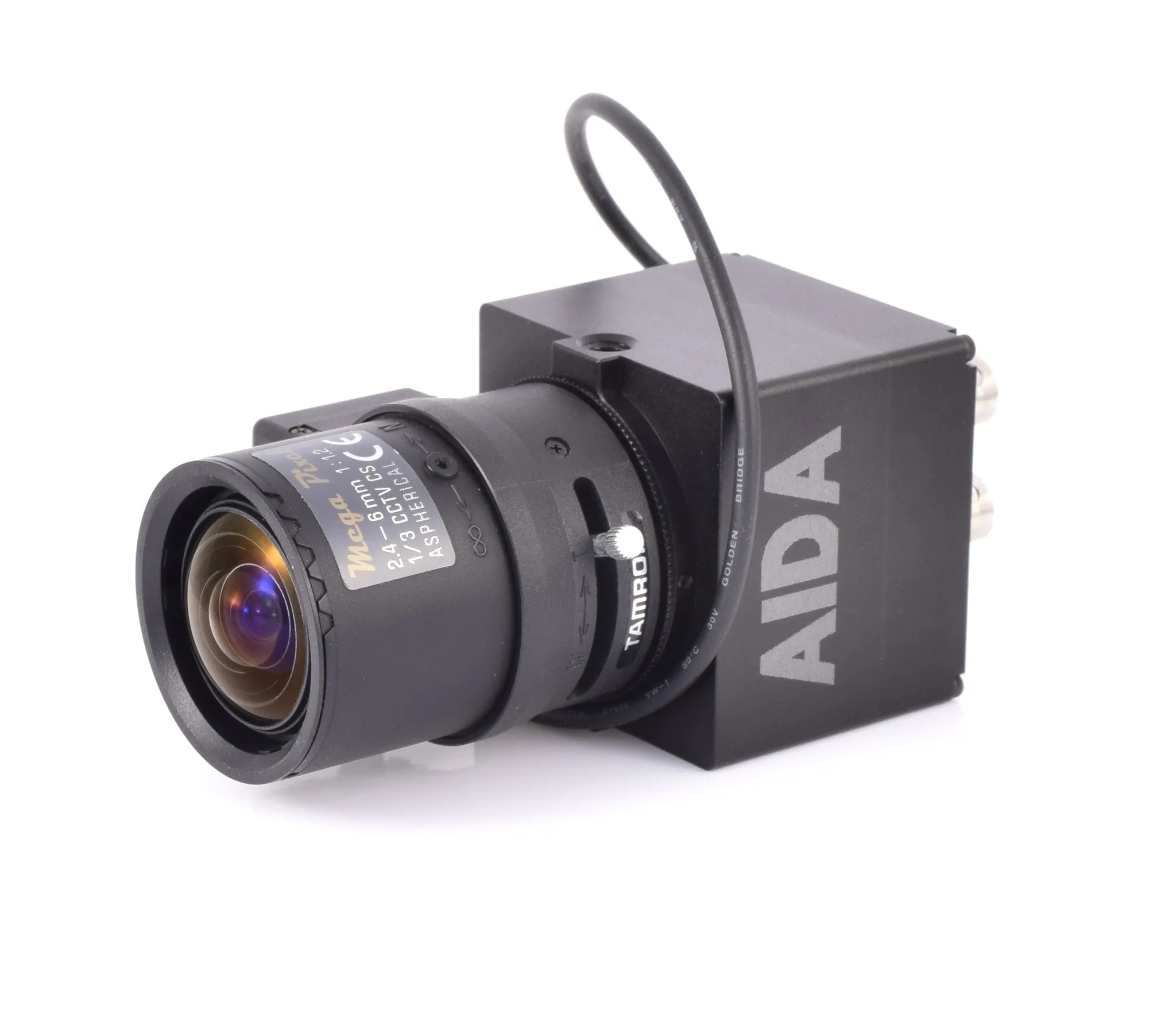

- Interchangeable lens design making it compatible with auto-iris CS and C mount lenses.
- Flawlessly relays embedded audio via SDI & HDMI.
- Built-in OSD controls for customizable image settings.
- Versatile, compact, and rugged design.
SPECIFICATIONS:
Image Sensor:
- 1/3 inch Progressive CMOS
Sensor Size:
- 5.346mm x 3.003mm (16:9)
Effective Pixels:
- Horizontal: 1920
- Vertical: 1080
Pixel Size:
- 2.75 µm x 2.75 µm
Resolution:
- 1080p & 1080i: 1920 x 1080
- 720p & 720i: 1280 x 720
Resolution/Rate:
- 1080 60p/59.94p/50p/30p/29.97p/25p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/25p
Output:

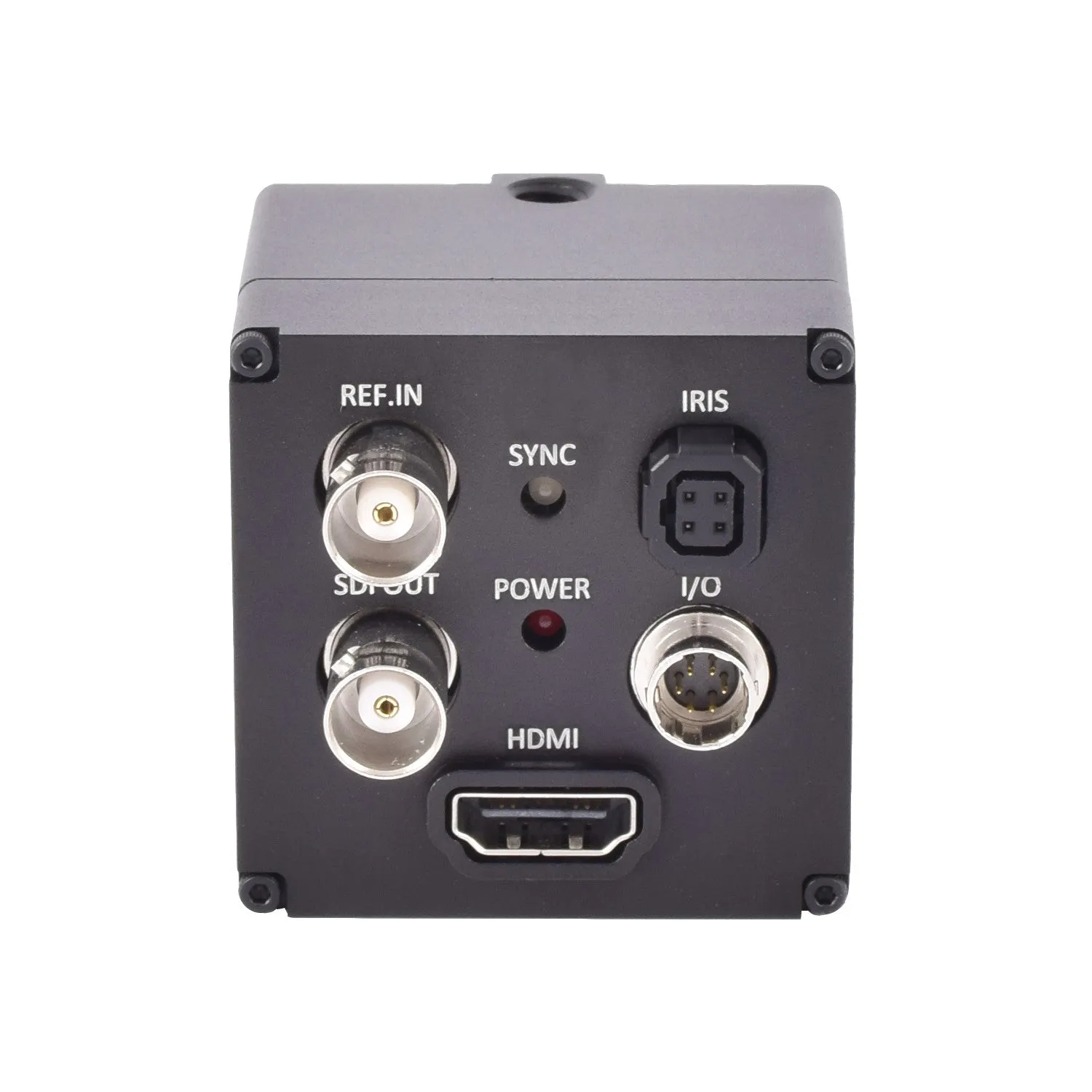

- HD-SDI/3G-SDI (1 BNC), HDMI 1.3a
Color SpaceExternal Tri-Level Input:
- 4:2:2 (YCbCr) 10bit
Min. Illumination:
- 0.2Lux (Day)
- 0.1Lux (Night)
- 0.005Lux (Slow Shutter ON)
White Balance:
- Auto & Manual (19,000 K - 11,000 K)
Lens:
- C/CS Mount (Default 3.6mm HD Lens)
Audio Input:
- 3.5mm Analog Audio Input through I/O Cable
Sample Rate:
- 16 / 24 / 32 Bits
SMPTE:
- SMPTE 292M
- SMPTE 424M
Genlock:
- External Tri-Level Input
Camera Control:
- RS-485
- OSD Button
Operation Temp:
- 32° F - 104° F
Dimension:
- 49mm x 49m x 71mm / 1.92” x 1.92” x 2.79” (With default 3.6mm Lens)
Weight:
- 180g / 0.39Lbs (With default 3.6mm Lens)
Power:
- 6W at 12VDC ( 9 - 15VDC)
APPLICATIONS:
- Broadcast
- Live Production
- Video Conference
- Medical
- Worship
- Theater
- Education
- Security
