Product Details

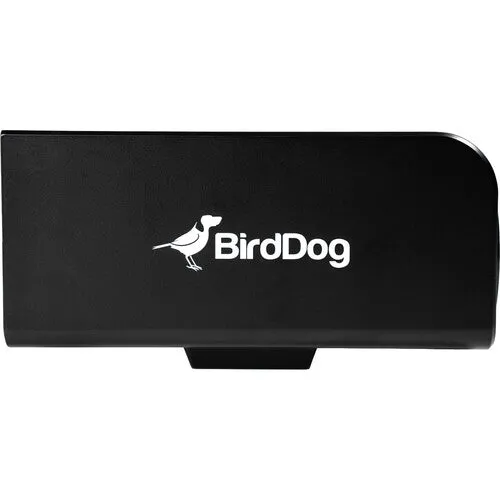

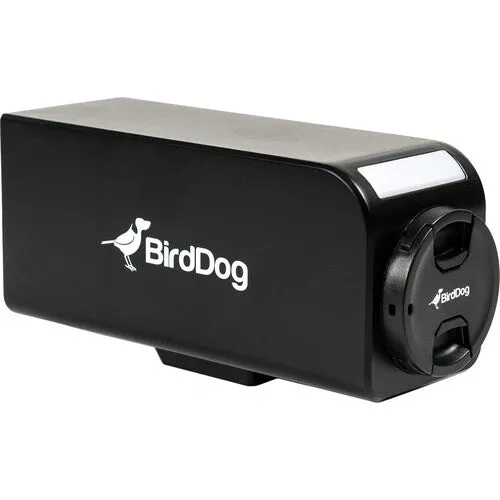

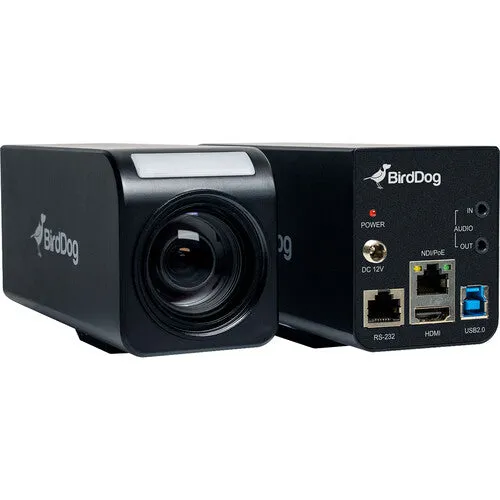

Capture up to 1080p60 video and control and stream via NDI with the PF120 1080p Full NDI Box Camera with 20x Optical Zoom from BirdDog. The PF120 is designed to capture static shots of a specific area of your environment, such as meeting rooms, conferencing applications, practical demonstrations, and more. The box-style camera features include a Sony CMOS sensor, a built-in 20x optical zoom lens, a 49mm filter thread for optional filters or wide-lens adapters, and a large tally light.

The camera captures up to 1080p60 video over its HDMI and full NDI outputs. It can also be used as a webcam with your computer using its USB Type-B with UVC output, compatible with popular video streaming sites such as Zoom, Teams, WebEx, and more. You can adjust its color temperature settings when using it in different environments, and it supports a full color matrix. Audio features include 3.5mm audio input and output, allowing you to add analog audio to your streams. The PF120 also supports a Dante audio option via its LAN port with a separately available firmware update. The RS-232 port allows you to control the camera's settings, and you can also utilize the full NDI controls on a compatible NDI network.

The PF120 is constructed with a durable metal enclosure, and it can be mounted onto a tripod, plate, or rig, using its 1/4"-20 and 3/8"-16 threads. The camera can be powered using an included locking power adapter or conveniently over Power-over-Ethernet (PoE) when installed on a compatible network.

Key Features

Sony CMOS sensor captures up to 1080p60 video resolution
Full color matrix with color temperature control
Large tally light on front
Full NDI and HDMI video outputs
Use as webcam with USB Type-B video output with UVC support
3.5mm audio input and output, optional Dante support
20x optical zoom
49mm lens filter thread for filter or wide-angle/fisheye lens
Powers using PoE (Power-over-Ethernet) or included locking power supply
Durable metal enclosure
Sensor Sony CMOS
Resolutions Up to 1080p60
Focal Length Not Specified by Manufacturer
Optical Zoom 20x
Field of View Not Specified by Manufacturer
Color Temperature Adjustment Yes
Filter Thread 49 mm
Minimum Illumination Not Specified by Manufacturer

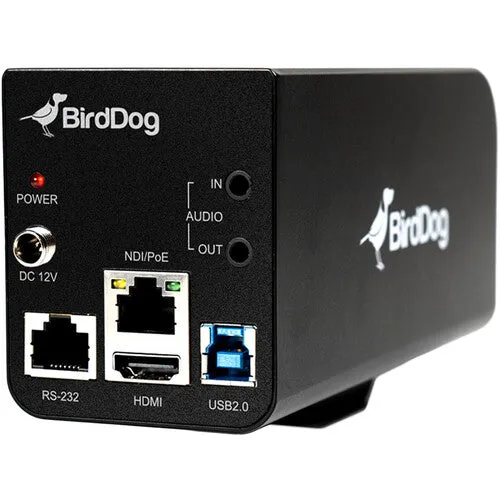

Video Output Connectors 1 x HDMI Output
1 x RJ45 NDI/LAN
1 x USB Type-B with UVC
Audio Input 1 x 3.5 mm
Audio Output 1 x 3.5 mm
Audio Support NDI/HDMI Embedded, Dante Support
Communication Interface 1 x RJ45, RS-232 Serial
Tally Light Yes, on Front
Power Supply 1 x Locking Jeita, 12 VDC
PoE 802.3af via RJ45
Chassis Material Metal
Tripod Mounting Threads 1/4"-20 and 3/8"-16
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 2.94 lb
Box Dimensions (LxWxH) 9.8 x 8.9 x 3.3"
BirdDog BDPF120 1080p Full NDI Box Camera with 20x Optical Zoom
