Product Details
＋

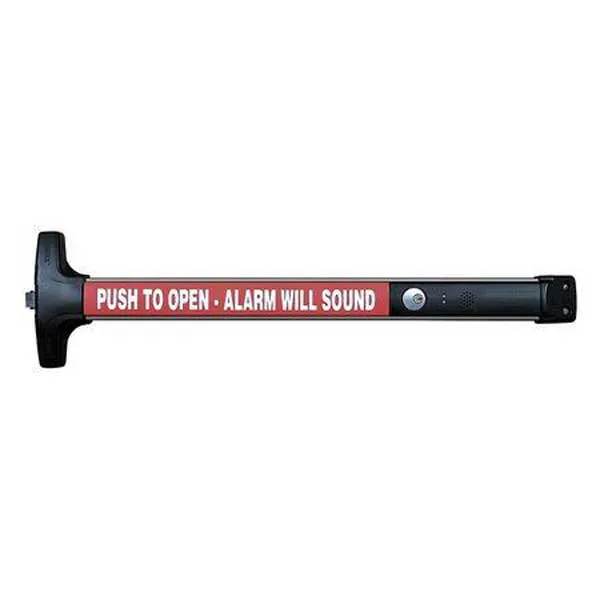

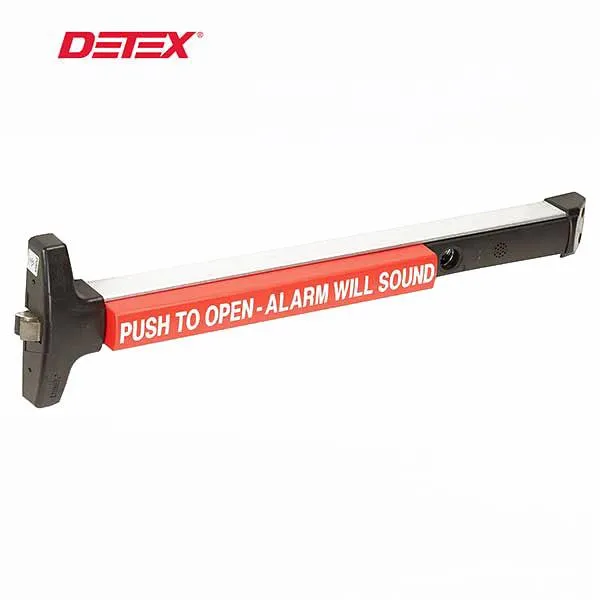

The Detex V40-EB-CD Power Alarmed Rim Exit Device is designed for primary and secondary exits that require an alarmed panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Available in various configurations, the V40-EB-CD provides security while meeting all life safety concerns, offering exceptional value.
Features
- Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device
- 36 – Fits 36″ Door Width
- Powered by a standard, 9-volt battery
- Fasteners: Machine and Self-Drilling Screws
- Cylinder Dogging (CD) Standard
- Field selectable key rearm or 2 min. auto rearm
- Visual and audible arming indicators
- Armed and disarmed field selectable status indicator
- 100 Decibel alarm
- 10 Year Mechanical/3 Year Electrical – Limited Manufacturer’s Warranty
Specifications
| Length | 32-7/8" |
| Door Width | 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Door Stile | 2-1/2″ stile doors with 98 semi-mortise strike Standard doors with 99 strike |
| Power | 9 Volt Battery |
| Dogging | Single mortise 1-1/8″ cylinder (sold separately) provides arming and dogging – 1/8 turn cylinder dogging |
| Bolt | 3/4" Deadlocking Pullman-type latch bolt |
| Alarm | 100 Decibels |
| Rearming | Selectable: key rearm or 2 minute automatic rearm |
| Finish | 628 (Satin Aluminum) |
| Warranty | 10 Year Mechanical 3 Year Electrical |
