Product Details
＋

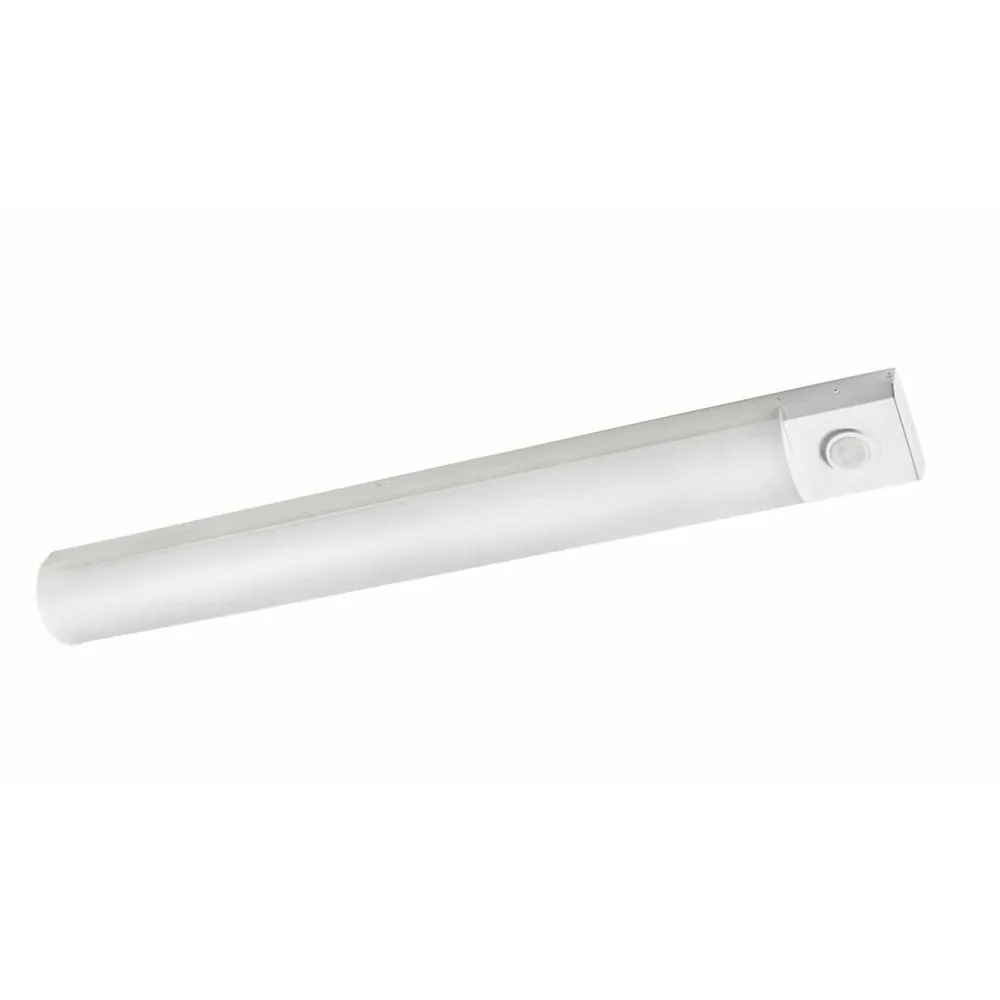

FSC Lighting L6000 Series LED Radial Wrap
The L6000 LED radial is a modern fixture in a bright white finish. Ideal for lighting stairwells and multideck parking. The 6000 drives excellent paybacks while providing an aesthetic upgrade.
Features
- Applications: Ideal for use in parking garages, stairwells, night-lighting, corridors, canopies and laundry facilities.
- Construction: Housing made from die formed heavy gauge pre-painted cold rolled steel and is finished with a post- production white polyester polymer. Available with extended body to house sensor within a box. Tool-less sensor mounting plate allows for easy access when making sensor adjustments. Frosted lens.
- Mounting: Surface mount. Cord and plug options offered
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 198,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: ETL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified 1 . RoHS Compliant. Buy American Act Compliant.
| L6024-16W-3000K | L6024-16W-3500K | L6024-16W-4000K | L6024-16W-5000K | L6024-27W-3000K | L6024-27W-3500K |
| L6024-27W-4000K | L6024-27W-5000K | L6048-31W-3000K | L6048-31W-3500K | L6048-31W-4000K | L6048-31W-5000K |
| L6048-52W-3000K | L6048-52W-3500K | L6048-52W-4000K | L6048-52W-5000K | L6096-62W-3000K | L6096-62W-3500K |
| L6096-62W-4000K | L6096-62W-5000K | L6096-104W-3000K | L6096-104W-3500K | L6096-104W-4000K | L6096-104W-5000K |

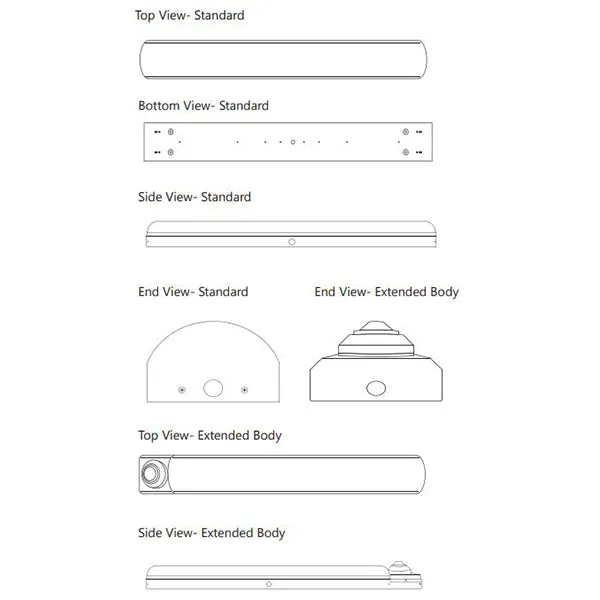

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2FT | 5.0" | 24.0" | 6.0" | 5lbs |
| 2FT w/ EB | 5.0" | 30.0" | 6.0" | 6lbs |
| 4FT | 5.0" | 48.0" | 6.0" | 11lbs |
| 4FT w/ EB | 5.0" | 52.0" | 6.0" | 12lbs |
| 8FT | 5.0" | 96.0" | 6.0" | 20lbs |
| 8FT w/ EB | 5.0" | 102.0" | 6.0" | 21lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Extended body is used for housing sensors however sensors can be installed without using the extended housing.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
