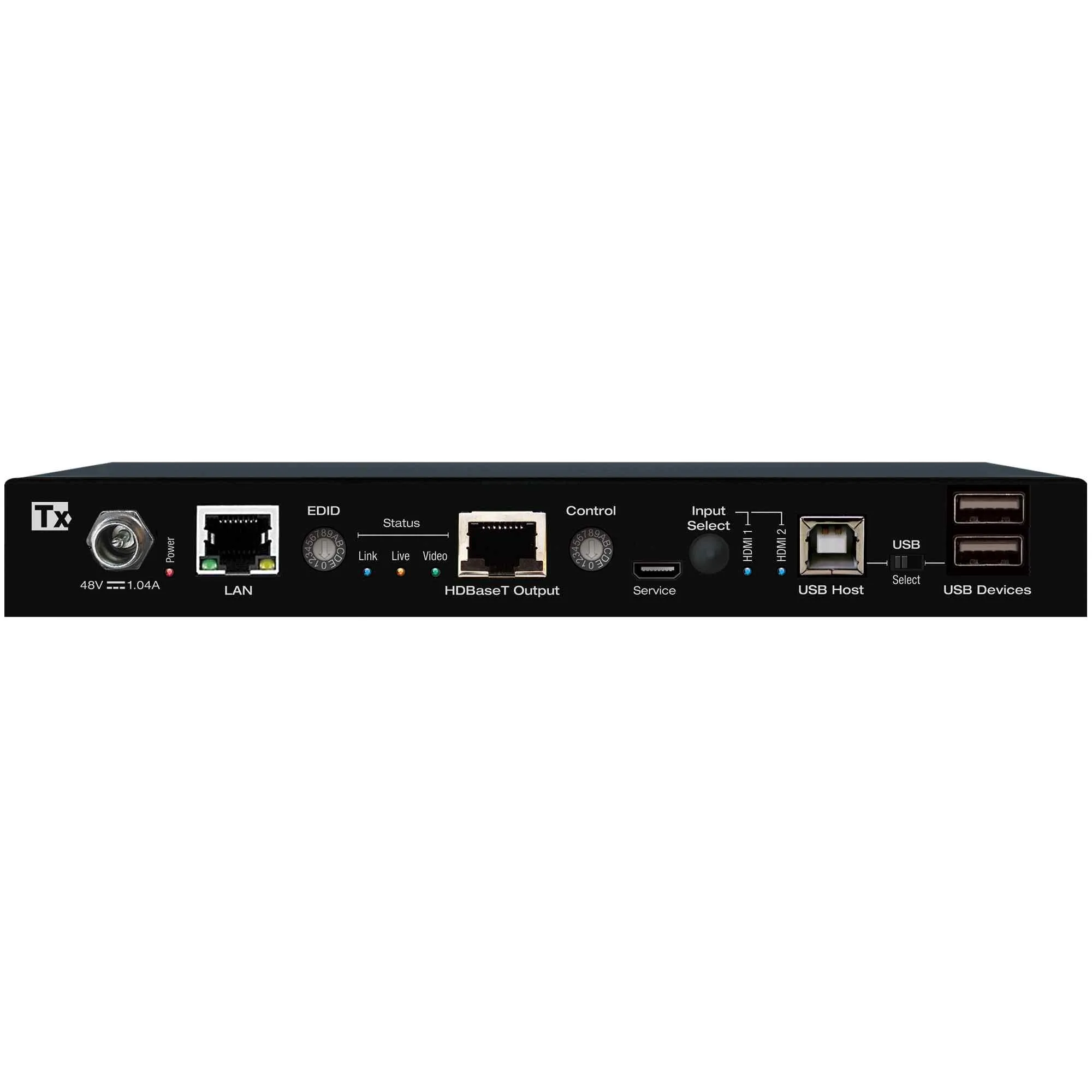

KD-PS22UTx is an HDBaseT transmitter presentation switcher soft-codec enabling interface with two HDMI inputs, USB Host or Device connections, and HDMI pass-through output for an additional display. KD-PS22UTx is ideal for professional video installations in conference rooms, classrooms, lecture halls, auditoriums, as well as audio return (ARC) applications. KD-PS22UTx and its Receivers (sold separately) have audio de-embedding for ease of integration with audio systems. KD-PS22UTx features push-button or TCP/IP switching selection of the desired source and is KD-App Ready. In addition to AV signals, KD-PS22UTx extends USB 2.0, IR, RS-232, and LAN for controlling remotely located equipment.

Features

• Presentation Switching: 2 HDMI Source selection by push button or IP control
• Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switchers
• Video Conference USB Hub: USB Host Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• KDPlug & Present: Add KD-CX800 to build programming-free automation system for room display on / off, screen control, auto switching, KD-CAMUSB PTZ camera, KD-AMP220 amp with mic mix, and common video source control
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• ARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Unit powered by Rx/Presentation Switch unit
• Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft (Long Range Mode)
• Long Range Mode: Extends 1080p signals up to 152m (500 ft.) using CAT5e/6 (UHD/4K not supported)
• Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
• Control System Support: Key Digital® App Ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API

Specifications

• Inputs: 2 HDMI, 1 IR Sensor, 1 Bi-Directional RS-232
• Outputs: 1 HDBaseT RJ45, 1 Bi-Directional RS-232, 1 IR output
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR Connectors: 1 IR sensor 3.5mm, 1 IR emitter 3.5mm
• RS-232 Connector: 3-pin phoenix terminal


General

• Regulation: CE, RoHS, WEEE, EAC;
• Enclosure: Black Metal
• Product: 5.5 x 4.1 x 1.43” (200.3 x 153 x 25.4mm), Weight: 1 lbs
• Packaging: 11” x 7.9” x 2.1” (250 x 195 x 90 mm), Weight: 2.1 lbs
