Name: Key Digital KD-UPS52U Universal Presentation Switcher
SKU: 393219

Product Details ＋

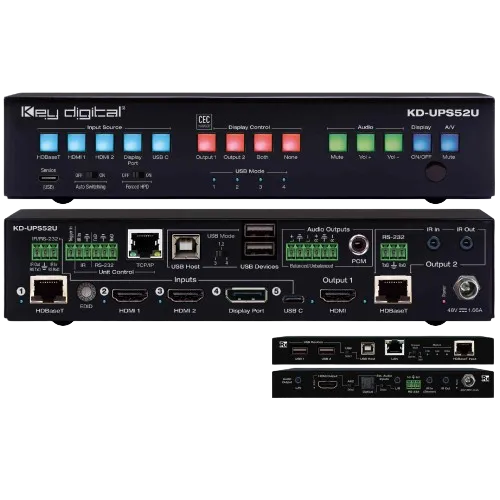

Key Digital® KD-UPS52U is a 4K/18G KD-App Ready universal presentation switcher video conference USB connectivity hub. It boasts app-ready integration, CEC display control, auto switching, and audio de-embedding creating a user-friendly, simplified presentation system.

Multiple Input Options

KD-UPS52U input options include two HDMI, one Display Port, one USB-C, and one HDBaseT input. These options accommodate an array of devices in modern presentation spaces.

The HDBaseT input offers single cable integration with compatible AV USB switching transmitters. These include KD-X4x1WUTx, KD-X3x1WUTx wall plates, or the table-mounted KD-PS22UTx (each sold separately).

Video Conference USB Hub

With two USB-A and one USB-B connector, KD-UPS52U provides comprehensive USB connectivity for extending USB peripherals.

Users can extend webcams, USB microphones, touchscreen displays, and conferencing DSPs into conference host laptops or desktop computers.

Dual Outputs for Audience and Presenter

KD-UPS52U has mirrored HDMI and HDBaseT outputs, allowing for audience and presenter views. The HDBaseT output connects to the included KD-X100MRx to extend monitors or projectors up to 100m (328ft) away.

Ideal for Professional AV Installations

KD-UPS52U is well-suited for a variety of settings, including conference rooms, board rooms, classrooms, lecture halls, and auditoriums.

It facilitates the display of video sources on up to two connected displays while offering analog and digital audio de-embed ports for amplifiers, DSPs, or sound bars.

Comprehensive Control and Integration

Add KD-AMP220, and KD-CAMUSB to your KD-UPS52U system to create an app-ready, all-in-one solution for display power, video switching, volume & microphone level, and PTZ camera control.

Features

Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add compatible KD HDBaseT transmitter for plug-in on walls, floor and table boxes
Presentation Switching: 1 HDBaseT, 2 HDMI, 1 Display Port, 1 USB-C source selection by push button, IP, RS-232, IR, auto switching, or trigger control
Video Conference USB Hub: USB Host Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control via KD-App and more
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
CEC Manager™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
ARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U
Installation: Half-rack width with rack mounting ears included
Signal Extension on HDBaseT Input and Output: 4K/UHD (18G) up to 10040m / 328ft, 1080p up to 150m / 492ft-Deep
Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
Surround Sound Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby TrueHD®, Dolby Atmos®
KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager

Specifications

AV Inputs: 2x HDMI, 1x Display Port, 1x USB-C,
AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 2-pin terminal for IR pass-thru to HDBaseT Input, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
RS-232 Connector: 3-pin phoenix terminal
