What is included with the Bike Slide:
- Two Accuride locking/non-locking tracks and track housing
- Adjustable height angle brackets
- Bike plate for front forks and rear tire.
- Thule Low Rider Bike Mounts
- Rear tire tie down

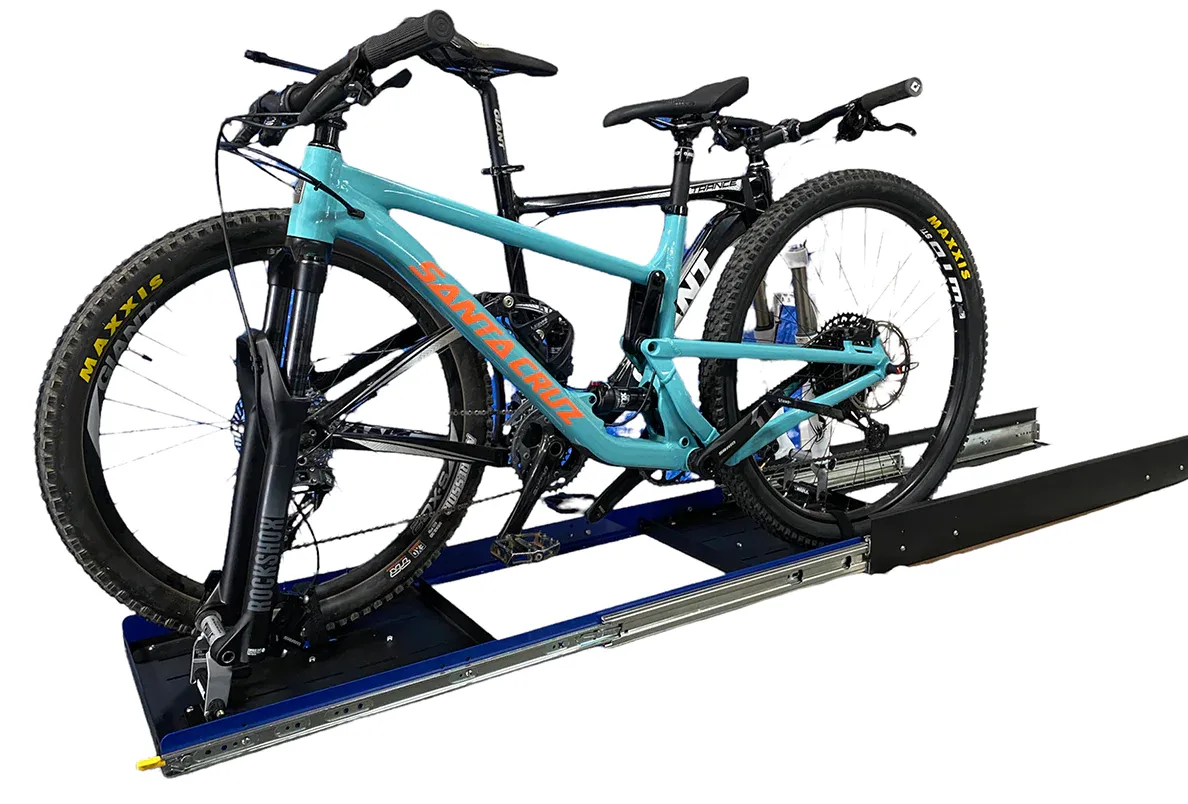

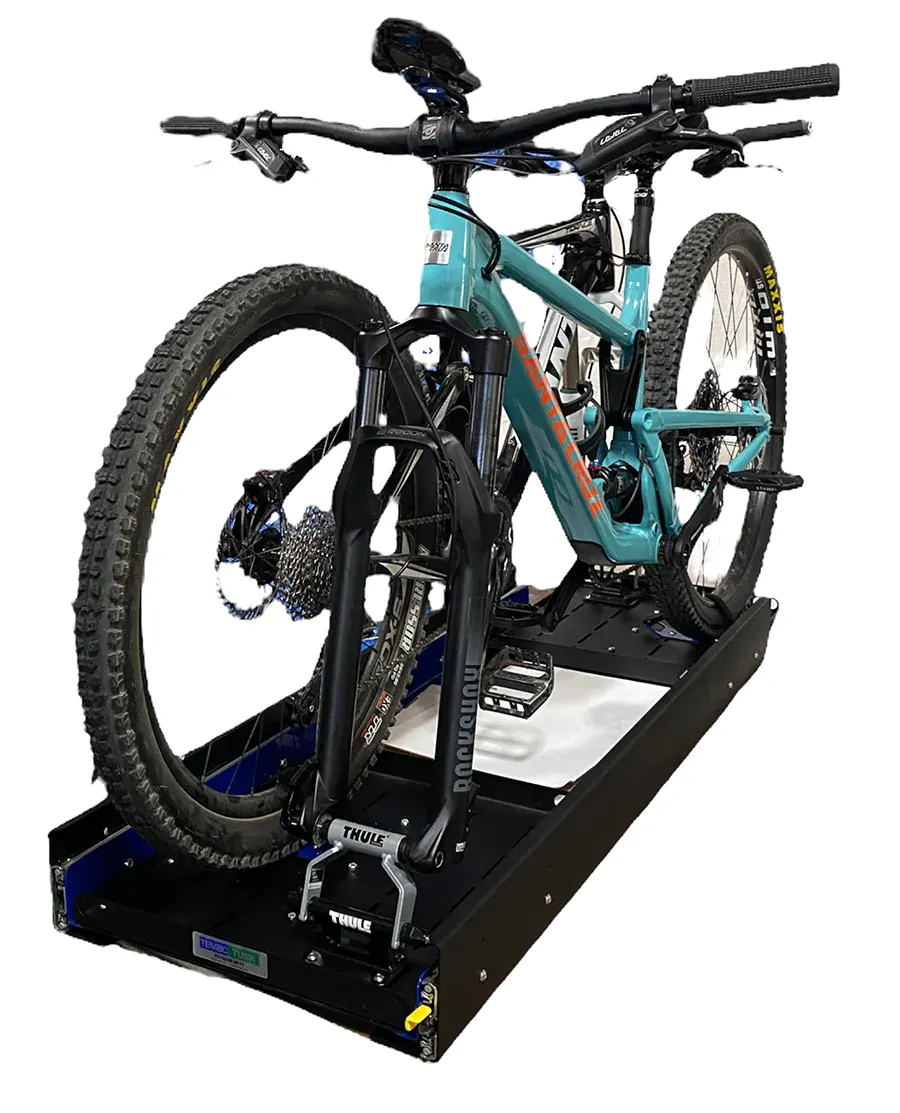

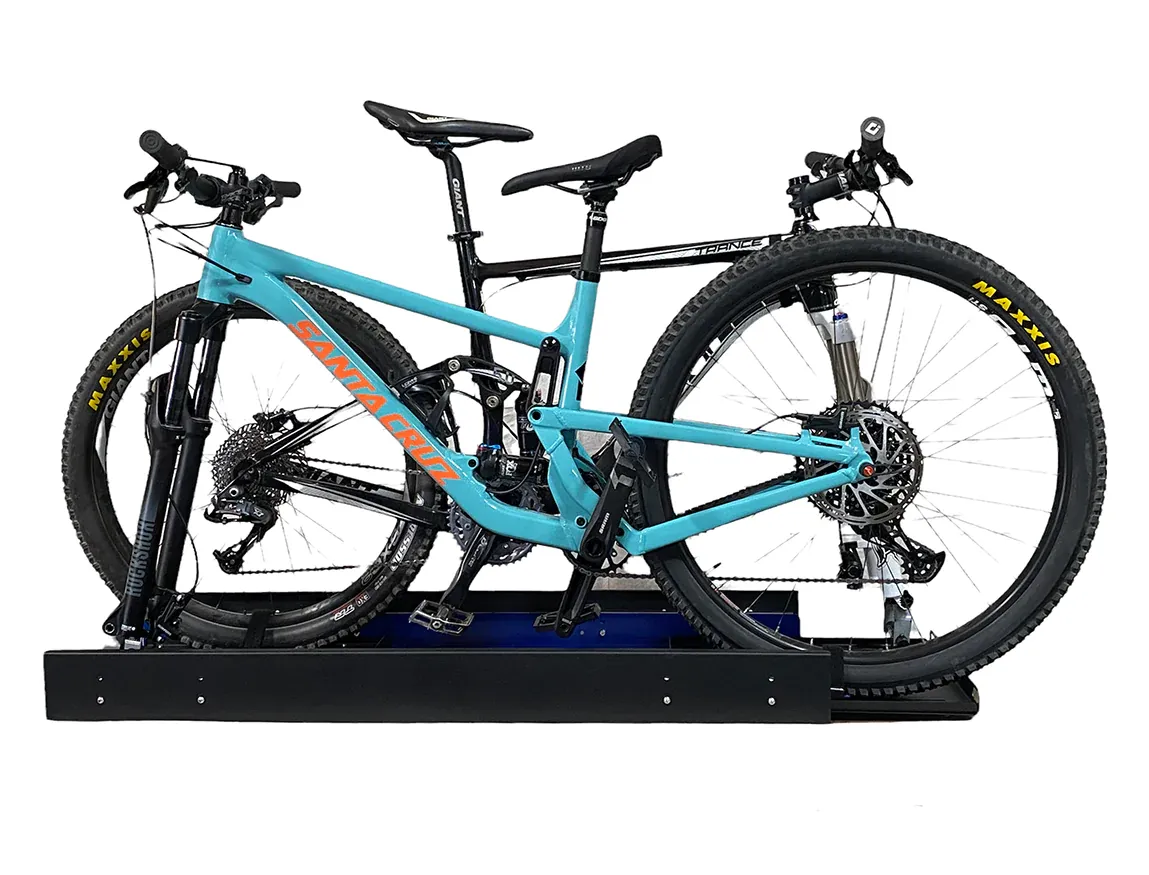

The Dual Bike Slide uses top of the line Accuride locking slide tracks. These are the toughest, most rugged cargo slides made. The Bike Slide uses a 48" track that will lock in and out. Including a Thule Low Rider Bike mount and rear tire stabilizer. The track will slide out 100% or 48" and can be adjusted to different heights to clear vehicle clearance deviations. The bike pan can be adjusted for different size bikes.Outside dimensions (Closed): 18 3/8" wide x 58 1/2" deepOutside dimensions (Open): 18" wide x 48" extended
The Bike Slide has seven configurations. you can adjust the cargo level into seven different heights depending on your needs. Have a lip or protrusion you need to get over? No problem!
The Bike Slide system can be adjusted to the following heights. From the bolt down location:
- .5” inches as the Lowest setting
- 1.25”
- 2”
- 2.5”
- 3.25”
- 4”
- 4.75”
Not enough height? Tembo Tusk also has the optional Riser Blocks that will add 2.25” and 3.25” to any measurement listed above.
The Dual Bike Slide will ship in two boxes. The bike pans will need to be assembled onto the tracks.
Bikes shown in the images are not included. Bikes for demonstration only. Thule Fork Adapter not included.
