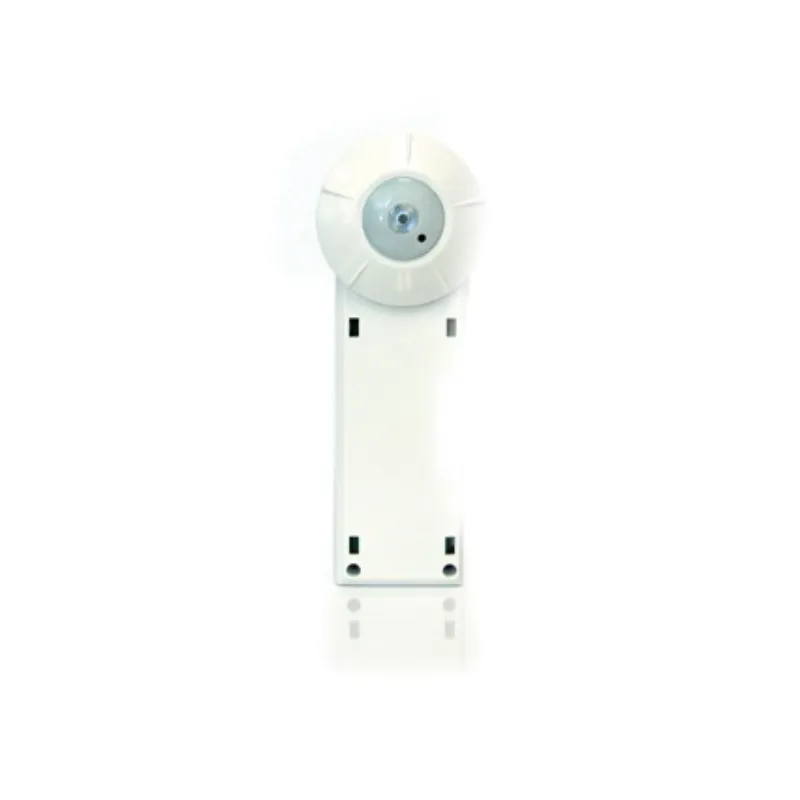

The LMLS-400 is a closed loop photosensor that measures the ambient light level in order to automatically switch or dim one zone of lighting.

Features

• Voltage: 24VDC from DLM local network

• Amperage: 7 mA

• Sensor Type: Daylight

• Spatial response: 100º

• Daylight responsive on/off, bi-level, tri-level or dimming control for one lighting zone

• Extended tube model accommodates thicker ceiling materials
• 100 degree spatial response for optimal detection of ambient light level
• Automatic calibration and configuration; optional hold off setting to maximize energy savings
• Photodiode corrected to match the photopic response of the human eye
• Can be calibrated in any daylight condition

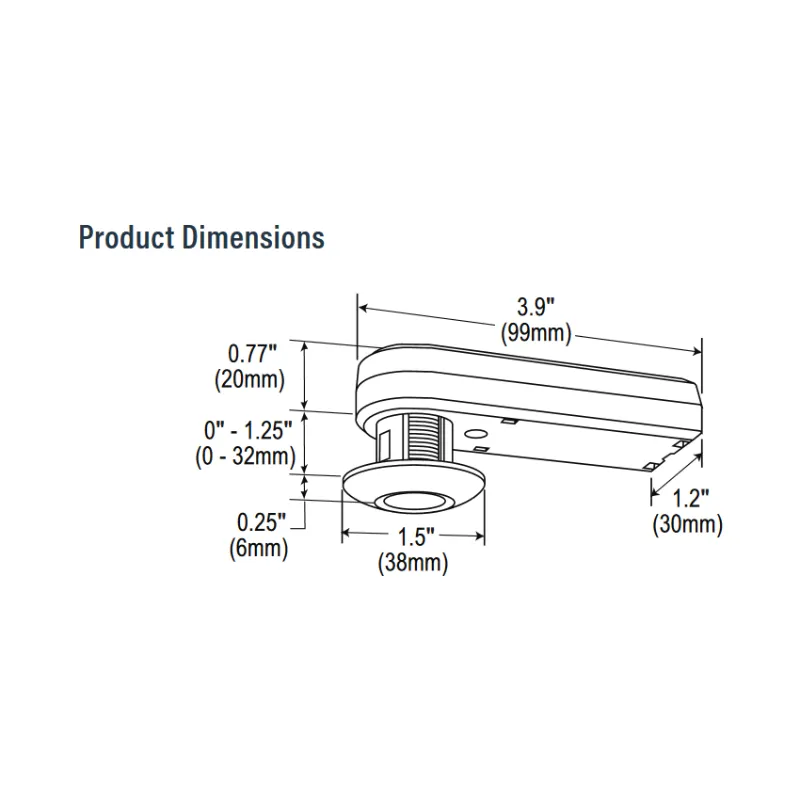

Dimensions

• Length: 3.9"
• Width: 1.5"
• Height: 0.77"
