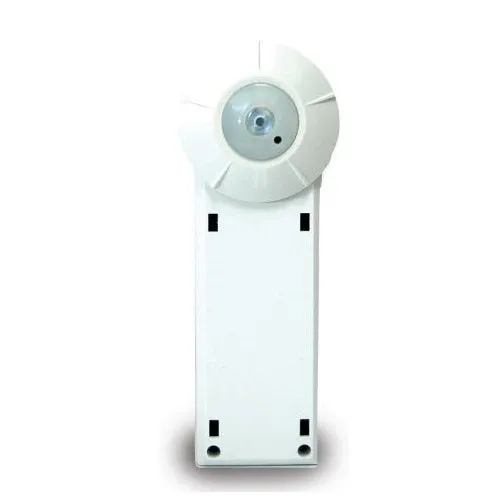

The LMLS-400 is a closed loop photosensor that measures the ambient light level in order to automatically switch or dim one zone of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers. The LMLS-400 has a photodiode with an extended range of 1-10,000 footcandles (fc), and photopic correction to mimic the human eye, for precise measurement of visible light.

Features:

• Type: Single Zone, Closed Loop
• Color: White
• Typical Applications: Private Offices, Cafeterias, Classrooms Atriums, Lobbies
• LightOutput 1FCD: On/Off, Bi-level, Tri-level or Dimming Control
• Votlage: 24VDC
• Daylight responsive on/off, bi-level, tri-level or dimming control for one lighting zone
• Component of Digital Lighting Management integrated control system
• 100 degree spatial response for optimal detection of ambient light level
• Automatic calibration and configuration
• Photodiode corrected to match the photopic response of the human eye
• Can be calibrated in any daylight condition

Model:

LMLS-400-L
